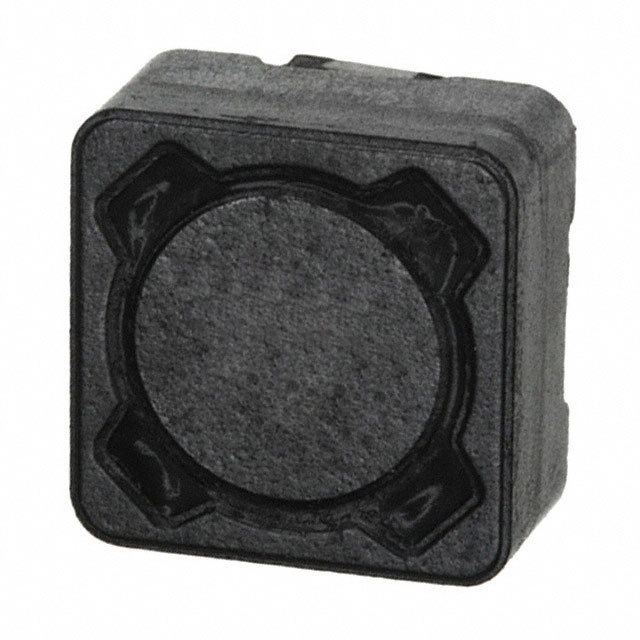

784778470
FIXED IND 47UH 1.1A 348 MOHM SMD
784778470 specifications
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.138" (3.50mm)
Operating Temperature：
-40°C ~ 125°C
Shielding：
Shielded
Type：
Drum Core, Wirewound
Tolerance：
±20%
Inductance：
47 µH
Ratings：
AEC-Q200
Inductance Frequency - Test：
100 kHz
Material - Core：
Nickel Zinc Ferrite (NiZn)
Size / Dimension：
0.287" L x 0.287" W (7.30mm x 7.30mm)
Current Rating (Amps)：
1.1 A
Frequency - Self Resonant：
13.5MHz
Current - Saturation (Isat)：
1.05A
Package / Case：
Nonstandard, 4 Lead
DC Resistance (DCR)：
348mOhm Max
Supplier Device Package：
7332
