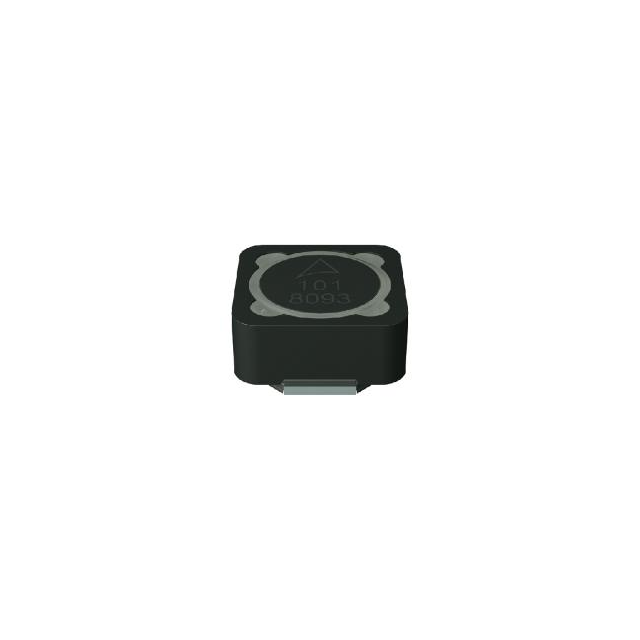

B82477P2334M000
FIXED IND 330UH 950MA 460MOHM SM
part Number：
B82477P2334M000
manufacturer：
TDK EPCOS
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 330UH 950MA 460MOHM SM
RoHS：
YES
B82477P2334M000 specifications
Mounting Type：
Surface Mount
Size / Dimension：
0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)：
0.256" (6.50mm)
Shielding：
Shielded
Operating Temperature：
-55°C ~ 150°C
Type：
Drum Core, Wirewound
Material - Core：
Ferrite
Tolerance：
±20%
Ratings：
AEC-Q200
Inductance Frequency - Test：
100 kHz
Package / Case：
Nonstandard
Inductance：
330 µH
Current Rating (Amps)：
950 mA
Current - Saturation (Isat)：
680mA
DC Resistance (DCR)：
460mOhm Max
