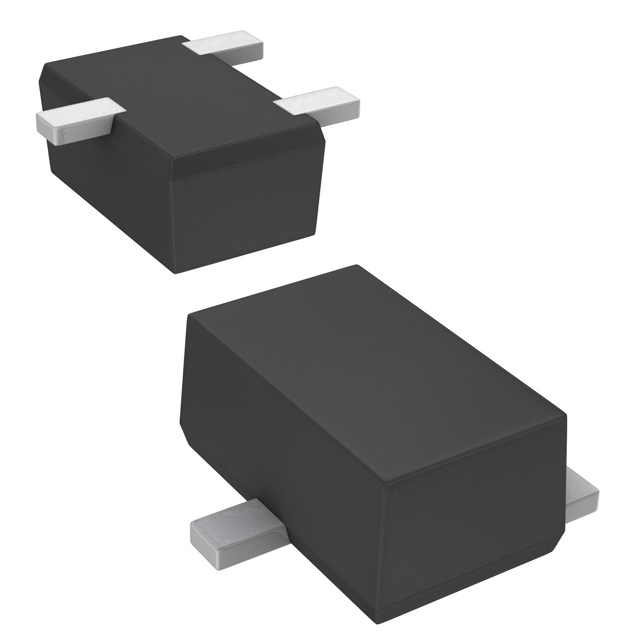

MTM232230LBF
MOSFET N CH 20V 4.5A SMINI3-G1-B
part Number：
MTM232230LBF
Alternative Model：
MURS120T3G,24AA02E48T-E/OT,INA231BIYFDT,SI2102A-TP,A3P1000-FGG144M,HTMS-108-52-G-S,TLV2548MPWREP,BQ51050BRHLR,MIC94045YFL-TR,LP2985AIM5-1.5/NOPB
manufacturer：
Panasonic Electronic Components
category：
Discrete Semiconductor Products > Transistors > FETs, MOSFETs > Single FETs, MOSFETs >
describe：
MOSFET N CH 20V 4.5A SMINI3-G1-B
RoHS：
YES
：
MTM232230LBF
MTM232230LBF specifications
Mounting Type：
Surface Mount
Operating Temperature：
150°C (TJ)
Package / Case：
SC-70, SOT-323
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Vgs (Max)：
±10V
Drive Voltage (Max Rds On, Min Rds On)：
2.5V, 4.5V
Drain to Source Voltage (Vdss)：
20 V
Power Dissipation (Max)：
500mW (Ta)
Current - Continuous Drain (Id) @ 25°C：
4.5A (Ta)
Vgs(th) (Max) @ Id：
1.3V @ 1mA
Supplier Device Package：
SMini3-G1-B
Rds On (Max) @ Id, Vgs：
28mOhm @ 1A, 4V
Input Capacitance (Ciss) (Max) @ Vds：
1200 pF @ 10 V
