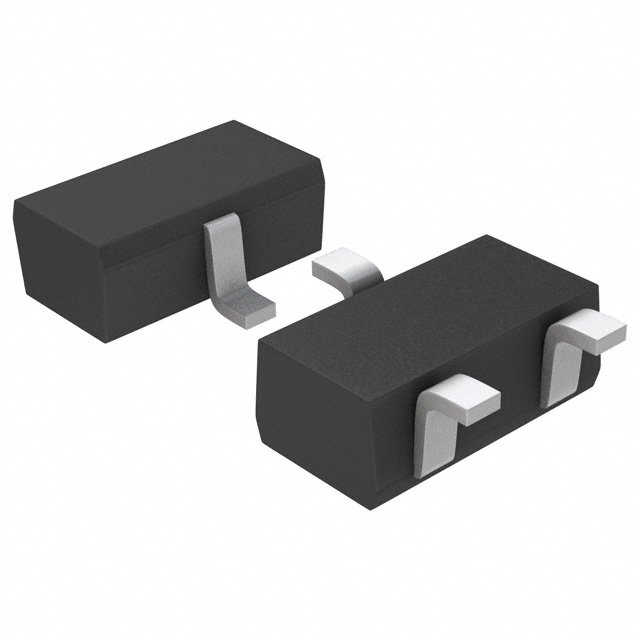

2SK3546J0L
MOSFET N-CH 50V 100MA SSMINI3-F1
part Number：
2SK3546J0L
Alternative Model：
manufacturer：
Panasonic Electronic Components
category：
Discrete Semiconductor Products >
Transistors >
FETs, MOSFETs >
Single FETs, MOSFETs >
describe：
MOSFET N-CH 50V 100MA SSMINI3-F1
RoHS：
NO
2SK3546J0L specifications
Mounting Type：
Surface Mount
FET Type：
N-Channel
Technology：
MOSFET (Metal Oxide)
Operating Temperature：
125°C (TJ)
Drain to Source Voltage (Vdss)：
50 V
Package / Case：
SC-89, SOT-490
Power Dissipation (Max)：
125mW (Ta)
Current - Continuous Drain (Id) @ 25°C：
100mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)：
2.5V, 4V
Vgs(th) (Max) @ Id：
1.5V @ 1µA
Supplier Device Package：
SSMini3-F1
Rds On (Max) @ Id, Vgs：
12Ohm @ 10mA, 4V
Vgs (Max)：
±7V
Input Capacitance (Ciss) (Max) @ Vds：
12 pF @ 3 V
